¶ Dashboards Classic API - GET a dashboard
Gets parameters of the specified dashboard.
The request produces an application/json payload.
| Method | Environment | API Endpoint |
|---|---|---|
| GET | Managed DESK for Government | https://{your-domain}/e/{your-environment-id}/api/config/v1/dashboards/{id} |
| GET | Environment ActiveGate | https://{your-activegate-domain}/e/{your-environment-id}/api/config/v1/dashboards/{id} |
¶ Authentication
To execute this request, you need an access token with ReadConfig scope.
To learn how to obtain and use it, see Tokens and authentication.
¶ Parameters
| Parameter | Type | Description | In | Required |
|---|---|---|---|---|
| id | string | The ID of the required dashboard. | path | required |
¶ Response
Refer to Tile JSON models to find JSON models for each tile type.
¶ Response codes
| Code | Type | Description |
|---|---|---|
| 200 | Dashboard | Success. The response body contains parameters of the dashboard. |
¶ Response body objects
¶ The Dashboard object
Configuration of a dashboard.
| Element | Type | Description |
|---|---|---|
| dashboardMetadata | DashboardMetadata | Parameters of a dashboard. |
| id | string | The ID of the dashboard. |
| metadata | ConfigurationMetadata | Metadata useful for debugging |
| tiles | Tile | The list of tiles on the dashboard. |
¶ The DashboardMetadata object
Parameters of a dashboard.
| Element | Type | Description |
|---|---|---|
| dashboardFilter | DashboardFilter | Filters, applied to a dashboard. |
| dynamicFilters | DynamicFilters | Dashboard filter configuration of a dashboard. |
| hasConsistentColors | boolean | The tile uses consistent colors when rendering its content. |
| name | string | The name of the dashboard. |
| owner | string | The owner of the dashboard. |
| preset | boolean | The dashboard is a preset (true) or a custom (false) dashboard. |
| shared | boolean | The dashboard is shared (true) or private (false). |
| tags | string[] | A set of tags assigned to the dashboard. |
| tilesNameSize | string | The general size of the tiles tile. Default value is medium The element can hold these values |
¶ The DashboardFilter object
Filters, applied to a dashboard.
| Element | Type | Description |
|---|---|---|
| managementZone | EntityShortRepresentation | The short representation of a DESK entity. |
| timeframe | string | The default timeframe of the dashboard. |
¶ The EntityShortRepresentation object
The short representation of a DESK entity.
| Element | Type | Description |
|---|---|---|
| description | string | A short description of the DESK entity. |
| id | string | The ID of the DESK entity. |
| name | string | The name of the DESK entity. |
¶ The DynamicFilters object
Dashboard filter configuration of a dashboard.
| Element | Type | Description |
|---|---|---|
| filters | string[] | A set of all possible global dashboard filters that can be applied to a dashboard Currently supported values are: OS_TYPE,SERVICE_TYPE,DEPLOYMENT_TYPE,APPLICATION_INJECTION_TYPE,PAAS_VENDOR_TYPE,DATABASE_VENDOR,HOST_VIRTUALIZATION_TYPE,HOST_MONITORING_MODE,KUBERNETES_CLUSTER,RELATED_CLOUD_APPLICATION,RELATED_NAMESPACE,SERVICE_TAG_KEY:<tagname>,HOST_TAG_KEY:<tagname>,APPLICATION_TAG_KEY:<tagname>,CUSTOM_DIMENSION:<key>,PROCESS_GROUP_TAG_KEY:<tagname>,PROCESS_GROUP_INSTANCE_TAG_KEY:<tagname> |
| genericTagFilters | DashboardGenericTagFilter | A set of generic tag filters that can be applied to a dashboard |
¶ The DashboardGenericTagFilter object
Generic tag filters that can be applied to a dashboard.
| Element | Type | Description |
|---|---|---|
| displayName | string | The display name used to identify this generic filter. |
| entityTypes | string[] | Entity types affected by tag. |
| suggestionsFromEntityType | string | The entity type for which the suggestions should be provided. |
| tagKey | string | The tag key for this filter. |
¶ The ConfigurationMetadata object
Metadata useful for debugging
| Element | Type | Description |
|---|---|---|
| clusterVersion | string | DESK version. |
| configurationVersions | integer[] | A sorted list of the version numbers of the configuration. |
| currentConfigurationVersions | string[] | A sorted list of version numbers of the configuration. |
¶ The Tile object
Configuration of a tile.
The actual set of fields depends on the type of the tile. Find the list of actual objects in the description of the tileType field or see Dashboards API - Tile JSON models.
| Element | Type | Description |
|---|---|---|
| bounds | TileBounds | The position and size of a tile. |
| configured | boolean | The tile is configured and ready to use (true) or just placed on the dashboard (false). |
| isAutoRefreshDisabled | boolean | The tile auto refresh is disabled. Only works for certain tile types. |
| name | string | The name of the tile. |
| nameSize | string | The size of the tile name. Default value is null. The element can hold these values |
| tileFilter | TileFilter | A filter applied to a tile. It overrides dashboard's filter. |
| tileType | string | Defines the actual set of fields depending on the value. See one of the following objects: • DATA_EXPLORER -> DataExplorerTile• CUSTOM_CHARTING -> CustomChartingTile• DTAQL -> UserSessionQueryTile• MARKDOWN -> MarkdownTile• IMAGE -> ImageTile• HOSTS -> FilterableEntityTile• APPLICATIONS -> FilterableEntityTile• SERVICES -> FilterableEntityTile• DATABASES_OVERVIEW -> FilterableEntityTile• SYNTHETIC_TESTS -> FilterableEntityTile• APPLICATION_WORLDMAP -> AssignedEntitiesWithMetricTile• RESOURCES -> AssignedEntitiesWithMetricTile• THIRD_PARTY_MOST_ACTIVE -> AssignedEntitiesWithMetricTile• UEM_CONVERSIONS_PER_GOAL -> AssignedEntitiesWithMetricTile• HOST -> AssignedEntitiesWithMetricTile• PROCESS_GROUPS_ONE -> AssignedEntitiesWithMetricTile• SYNTHETIC_SINGLE_WEBCHECK -> SyntheticSingleWebcheckTile• APPLICATION -> AssignedEntitiesTile• VIRTUALIZATION -> AssignedEntitiesTile• AWS -> AssignedEntitiesTile• SERVICE_VERSATILE -> AssignedEntitiesTile• SESSION_METRICS -> AssignedEntitiesTile• USERS -> AssignedEntitiesTile• UEM_KEY_USER_ACTIONS -> AssignedEntitiesTile• BOUNCE_RATE -> AssignedEntitiesTile• UEM_CONVERSIONS_OVERALL -> AssignedEntitiesTile• UEM_JSERRORS_OVERALL -> AssignedEntitiesTile• MOBILE_APPLICATION -> AssignedEntitiesTile• SYNTHETIC_SINGLE_EXT_TEST -> AssignedEntitiesTile• SYNTHETIC_HTTP_MONITOR -> AssignedEntitiesTile• DATABASE -> AssignedEntitiesTile• CUSTOM_APPLICATION -> AssignedEntitiesTile• APPLICATION_METHOD -> AssignedEntitiesTile• LOG_ANALYTICS -> AssignedEntitiesTile• OPENSTACK -> AssignedEntitiesTile• OPENSTACK_PROJECT -> AssignedEntitiesTile• OPENSTACK_AV_ZONE -> AssignedEntitiesTile• DEVICE_APPLICATION_METHOD -> AssignedEntitiesTile• DEM_KEY_USER_ACTION -> AssignedEntitiesTile• SLO -> AssignedEntitiesWithMetricTile• SCALABLE_LIST -> ScalableListTile• HEADER -> Tile• OPEN_PROBLEMS -> ProblemTile• PURE_MODEL -> Tile• DOCKER -> Tile• NETWORK_MEDIUM -> Tile• APPLICATIONS_MOST_ACTIVE -> Tile• NETWORK -> Tile• UEM_ACTIVE_SESSIONS -> Tile• DCRUM_SERVICES -> TileThe element can hold these values: • APPLICATION• APPLICATIONS• APPLICATIONS_MOST_ACTIVE• APPLICATION_METHOD• APPLICATION_WORLDMAP• AWS• BOUNCE_RATE• CUSTOM_APPLICATION• CUSTOM_CHARTING• DATABASE• DATABASES_OVERVIEW• DATA_EXPLORER• DCRUM_SERVICES• DEM_KEY_USER_ACTION• DEVICE_APPLICATION_METHOD• DOCKER• DTAQL• HEADER• HOST• HOSTS• IMAGE• LOG_ANALYTICS• MARKDOWN• MOBILE_APPLICATION• NETWORK• NETWORK_MEDIUM• OPENSTACK• OPENSTACK_AV_ZONE• OPENSTACK_PROJECT• OPEN_PROBLEMS• PROCESS_GROUPS_ONE• PURE_MODEL• RESOURCES• SCALABLE_LIST• SERVICES• SERVICE_VERSATILE• SESSION_METRICS• SLO• SYNTHETIC_HTTP_MONITOR• SYNTHETIC_SINGLE_EXT_TEST• SYNTHETIC_SINGLE_WEBCHECK• SYNTHETIC_TESTS• THIRD_PARTY_MOST_ACTIVE• UEM_ACTIVE_SESSIONS• UEM_CONVERSIONS_OVERALL• UEM_CONVERSIONS_PER_GOAL• UEM_JSERRORS_OVERALL• UEM_KEY_USER_ACTIONS• USERS• VIRTUALIZATION |
¶ The TileBounds object
The position and size of a tile.
| Element | Type | Description |
|---|---|---|
| height | integer | The height of the tile, in pixels. |
| left | integer | The horizontal distance from the top left corner of the dashboard to the top left corner of the tile, in pixels. |
| top | integer | The vertical distance from the top left corner of the dashboard to the top left corner of the tile, in pixels. |
| width | integer | The width of the tile, in pixels. |
¶ The TileFilter object
A filter applied to a tile.
It overrides dashboard's filter.
| Element | Type | Description |
|---|---|---|
| managementZone | EntityShortRepresentation | The short representation of a DESK entity. |
| timeframe | string | The default timeframe of the tile. |
¶ Response body JSON model
{
"dashboardMetadata": {
"dashboardFilter": {
"managementZone": {
"id": "3438779970106539862",
"name": "Example Management Zone"
},
"timeframe": "l_72_HOURS"
},
"dynamicFilters": {
"filters": [
"SERVICE_TYPE"
]
},
"name": "Example Dashboard",
"owner": "Example Owner",
"shared": true
},
"metadata": {
"clusterVersion": "Mock version",
"configurationVersions": [
4,
2
]
},
"tiles": [
{
"bounds": {
"height": 38,
"left": 0,
"top": 0,
"width": 304
},
"configured": true,
"name": "Hosts",
"tileFilter": {},
"tileType": "HEADER"
},
{
"bounds": {
"height": 38,
"left": 304,
"top": 0,
"width": 304
},
"configured": true,
"name": "Applications",
"tileFilter": {},
"tileType": "HEADER"
},
{
"bounds": {
"height": 304,
"left": 0,
"top": 38,
"width": 304
},
"chartVisible": true,
"configured": true,
"name": "Host health",
"tileFilter": {
"managementZone": {
"id": "3438779970106539862",
"name": "Example Management Zone"
}
},
"tileType": "HOSTS"
},
{
"bounds": {
"height": 304,
"left": 304,
"top": 38,
"width": 304
},
"chartVisible": true,
"configured": true,
"name": "Application health",
"tileFilter": {
"managementZone": {
"id": "3438779970106539862",
"name": "Example Management Zone"
}
},
"tileType": "APPLICATIONS"
}
]
}
¶ Example
In this example, the request lists the parameters of the Sample dashboard, which has the ID of 2768e6ca-e199-4433-9e0d-2922aec2099b.
The API token is passed in the Authorization header.

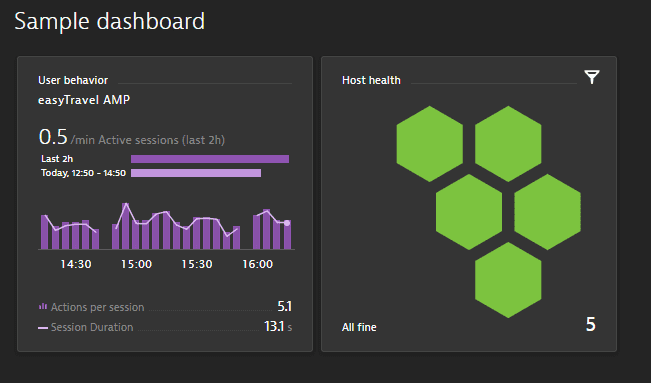

The dashboard looks like this in the UI:
¶ Curl
curl -X GET \
https://mySampleEnv.live.desk.com/api/config/v1/dashboards/2768e6ca-e199-4433-9e0d-2922aec2099b \
-H 'Authorization: Api-Token dt0c01.abc123.abcdefjhij1234567890'
¶ Request URL
https://mySampleEnv.live.desk.com/api/config/v1/dashboards/2768e6ca-e199-4433-9e0d-2922aec2099b
¶ Response body
{
"metadata": {
"clusterVersion": "1.166.0.20190311-110828",
"configurationVersions": [
2
]
},
"id": "2768e6ca-e199-4433-9e0d-2922aec2099b",
"dashboardMetadata": {
"name": "Sample dashboard",
"shared": true,
"owner": "john.smith",
"sharingDetails": {
"linkShared": true,
"published": true
},
"dashboardFilter": {
"timeframe": "l_2_HOURS",
"managementZone": null
}
},
"tiles": [
{
"name": "Host health",
"tileType": "HOSTS",
"configured": true,
"bounds": {
"top": 0,
"left": 304,
"width": 304,
"height": 304
},
"tileFilter": {
"managementZone": {
"id": "9130632296508575249",
"name": "Easytravel"
}
},
"filterConfig": null,
"chartVisible": true
},
{
"name": "User behavior",
"tileType": "SESSION_METRICS",
"configured": true,
"bounds": {
"top": 0,
"left": 0,
"width": 304,
"height": 304
},
"tileFilter": {
"managementZone": null
},
"assignedEntities": [
"APPLICATION-8E41C8C247910758"
]
}
]
}
¶ Response code
200
