¶ Configure and use a pie visualization in DESK
Dashboards Classic
To visualize your query results as a pie/doughnut chart, select Pie from the list above the query definition, in the upper-left corner of the page.
¶ Example pinned to a dashboard as a tile
¶ Change visualization
When switching between visualizations, be aware that some visualization settings are visualization-specific.

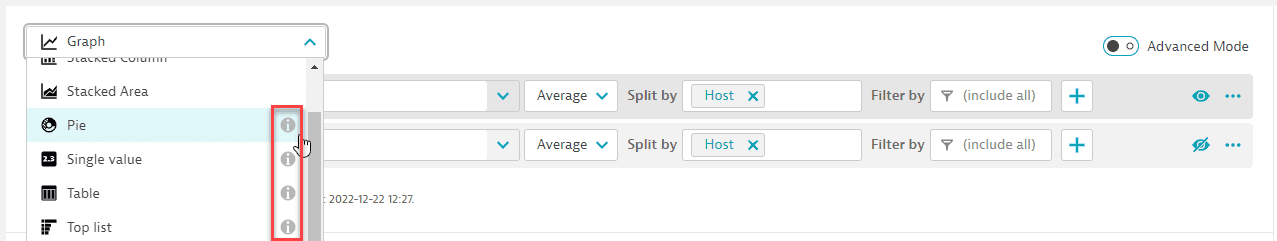

- If you select a visualization and configure Settings for that visualization, and then you switch to a different visualization, some of your settings for the first visualization may be ignored because they don't apply to the newly selected visualization. An information icon in the list of visualizations will alert you to the possibility.
- If you switch back to the original visualization, you may need to reconfigure some visualization settings.
¶ Change metric selection
By default, this visualization shows the first metric of a multi-metric query.
To select a different metric from a multi-metric query, you can select the letter next to the metric you want to visualize, or you can select the eye icon .
¶ Settings
The Settings section is one of the expandable sections in the right panel of Data Explorer. The contents of the Settings section may vary depending on the visualization you have selected.
¶ Show legend
Whether to display a legend under the visualization.
Note that the legend is active: you can select a legend entry to toggle display of the corresponding entry on or off.
¶ Fold transformation
The fold transformation combines a data points list (a timeseries: a collection of data points over the time period) into a single data point.
- The default fold transformation is Auto, which automatically selects the most appropriate time aggregation based on the metric.
- You can manually override Auto with any of the following: Last value, Average, Count, Maximum, Minimum, Sum, Median, Value, Percentile 10th, Percentile 75th, Percentile 90th.
- If you need to see the last reported value for a metric (rather than an aggregation), select Last value.
Fold transformation and resolution
Be aware that the Fold transformation setting affects the resolution.
-
If Fold transformation is set to Auto for visualization Table, Single value, Top list, or Honeycomb, the Inf (infinity) resolution is used to maintain backward compatibility. If the chosen metric selector doesn't support the Inf resolution, the fold transformation is automatically added to the end of the query.
-
If Fold transformation is set to a value other than Auto, fold is used.
-
Because all metric selectors are queried using the same total value mechanism (either fold or Inf), adding a new selector that requires fold might change the result of the other selectors.
To inspect the actual query used by Data Explorer, go to the Result section in Data Explorer and select > Copy request.
¶ Settings per metric
The Settings section also displays visualization options per metric selected for the query.
¶ Rename a metric
You can change the name of a metric as it is displayed on the chart and in the chart legend. The query definition retains the metric's original name.
- In the Settings section, select for the metric you want to rename.
- Edit the name, and then select the checkmark to save the new name.
¶ Change color palette
To change the color palette for a metric, in the Settings section, select a new palette from the list.
¶ Unit and Format
Use the Unit and Format settings to determine how your data is displayed. If you export to a CSV file, the Unit and Format settings are also reflected in the exported values.
¶ Unit
Use the Unit setting to set the unit in which the metric is displayed.
None = No unit displayed
Auto = DESK selects an appropriate display unit
Other selections specify the exact unit to display. The options here depend on the metric's unit. A time metric, for example, offers alternative units for displaying time.
To add a custom unit/suffix string, type the custom string in the Unit box and then select it from the list.
In Advanced mode, you can use :setUnit(<unit>) to select from a wider range of units.
Examples of order-of-magnitude notation in DESK:
| Notation | Factor | Meaning |
|---|---|---|
| k | 10^3 | kilo, thousand |
| M | 10^6 | mega, million |
| G | 10^9 | giga, billion |
| T | 10^12 | tera, trillion |
¶ Format
Use the Format setting to configure the number of decimal places displayed for the selected metric.
None = No formatting.
Auto = DESK selects an appropriate format. For example, where None would display 5.062357754177517 %, Auto would display 5.06 %.
Other selections specify the number of decimal places to display: 0, 0.0, 0.00, 0.000
¶ Examples
¶ Example: bytes
When the basic unit of the metric is bytes:
- If you set Unit to Auto, DESK automatically expresses the results in a human-readable unit, which in this case could be GiB.
A byte-based unit can have either a binary or decimal base, which will determine whether DESK selects, for example, GiB or GB. If no base is defined in the metric itself, a decimal base is used.
-
If the automatically selected unit isn't suitable in your case, you can force DESK to express the same values in a specific unit (Unit = B, KiB, MiB, or GiB).
-
If you want to see raw data (no conversion), you can set Unit to None and see the results in the basic unit of the metric (which in this case is bytes).
¶ Example: dollars and cents
When the basic unit of a metric is dollars and cents:
- For smaller values, to see the results expressed in exact dollars and cents: set Unit to Auto, and set Format to 0.00 (to have two decimal places for the cents).
- For larger values, to see the results expressed in thousands, millions, or billions of dollars and no cents: set Unit to k (thousand), M (million), G (billion), and set Format to 0 (to see nothing after the decimal point).
¶ Example: exact counts
When the basic unit for the metric is a count:
-
To see an exact count:
-
Set Unit to Auto
-
Set Format to None
-
To see a rough count:
-
Set Unit to k (thousand), M (million), G (billion), or T (trillion), depending on the magnitude of your values
-
Set Format to 0.0, 0.00, or 0.0000, depending on how many decimal places make sense in combination with the selected Unit setting
¶ Example: thresholds
When setting threshold values:
- If you select a Unit (for example, MiB), the Threshold settings are then prepared to match the selected unit, so you just need to enter threshold values without specifying MiB.
- If you set Unit to Auto (to let DESK automatically scale the displayed output), you still need to set Threshold values in a specific unit such as bytes.
¶ Add color override
To force a different color (override the color palette) for a specific series such as a selected host
- In the Settings section, select Add color override
- Select the series from the list
- Select the override color for that series
